Operability

• Powerful motor completes a 1" thread in only 16 seconds.
• Special ball bearings used for main shaft bearing.
• Larger stroke for carriage move.
• Carriage handle designed for easy operation.
• Excellent durability provides improved machine service life and precision.

Safety

• Motor has built-in brake to prevent entangling.
• Switch mechanisim protects Die-head from colliding with the hand wheel when threading short pipes.
• Double insulation motor.
• Motor equiped with auto-stop carbon brushes.
• Low centre of gravity designed for safety.

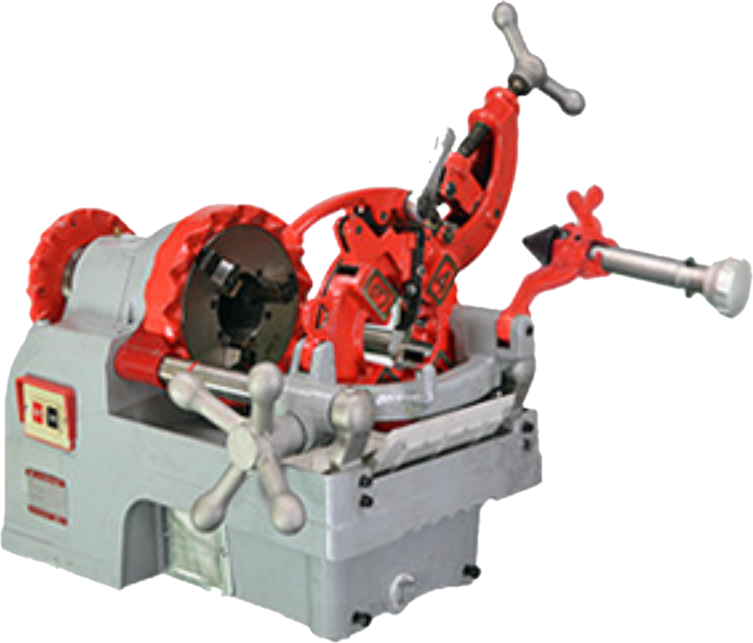

By changing the Dies, you can threading to process 8A to 50A (1/4" to 2") Steel and Stainless steel pipes, BSPT, NPT and NPSM, BSW, UNC, Metric, BSPP, PF. Conduit, Grooving and Bevelling.

• Small but powerful 1000W Universal motor.
• Easy to use, high productivity, excellent portability - only 48 kg.
• Pipe size can be adjusted simply by turning the lever nut.
• hread length can be adjusted by just changing the lever contact(except Manual Die-head).

Need to Know

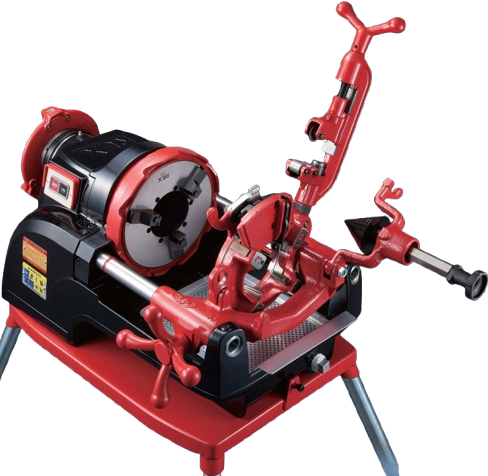

The FP80A pipe threading machine that gives you the best finish you've ever seen! By changing the Dies, you can threading 8A to 80A (1/4" to 3") Steel pipes, Stainless steel pipes, BSPT/NPT, BSPP, PF, Conduit, NPSM, Metric, UNC, BSW threads, Cut grooving and Bevelling. Based on totally new concept, the FP80A is designed to be user-friendly, easily maintained and completely reliable.

Features

• Less than 100 sec to make a perfect 4" pipe taper thread, and less than 20 sec for a 1" taper thread.
• Uni-auto Die-head for 0.5" - 2" pipe. Dies are compatible with NP50A.NP80A Manual Die-heads and Uni-auto heads.
• Profiling Die-heads for 2.5" - 4". REX original profiling system enables precise, straight tapers, with20mm dies performing at higher speed and requering less power.
• Quick adjustable cutter.
• Quiet, maintenance-free condeser motor.
• Buit-in tool box is convinient for on site work.
• Large-capacity scrap catcher.
• Compact light weight for its class (123kg), it can be set up by just 2 people.

Features

• Uses condenser motor for quiet operation.
• Efficient 2-speed transmission speed up work.
• Powerful hammer chuck holds large-diameter pipes securely.
• Uses notch profiling Die-heads, suitable for threading large-diameter pipes.
• The notch profiling Die-head has low cutting resistance for optimum threading of large-diameter pipes.
• Threading size, thread length and microfine adjustement of thread can all be adjusted easily.

Features

• High precision machining avoids unwanted flared pipe ends.
• Roll grooving to prevent damage to pipes
• Hand Pump
