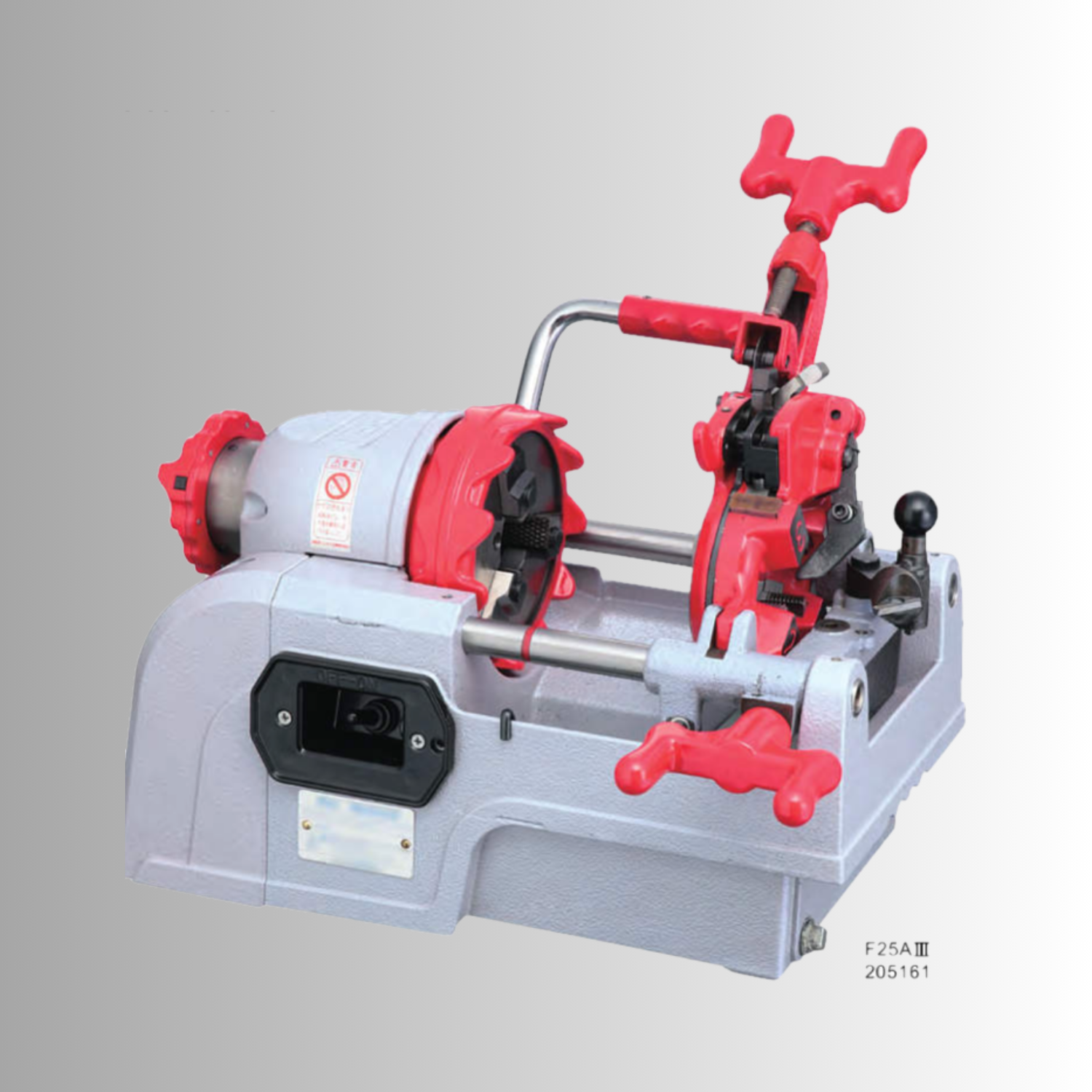

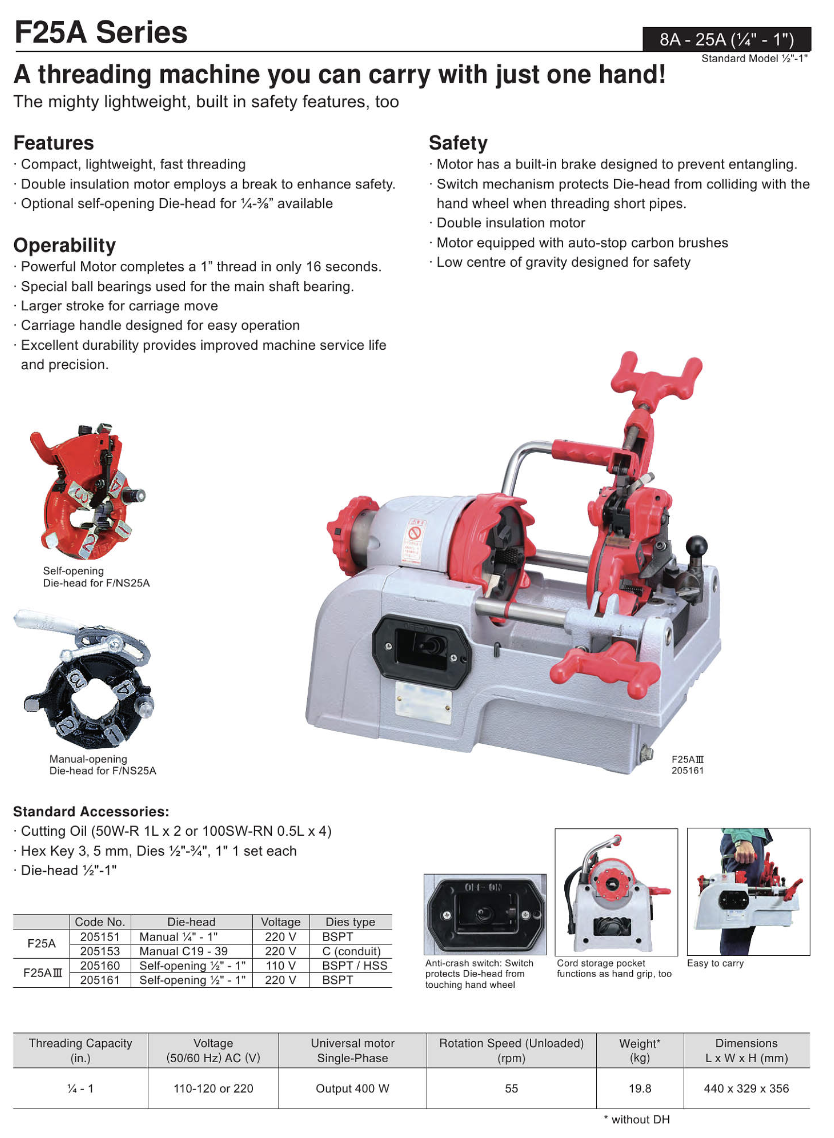

Operability

• Powerful motor completes a 1" thread in only 16 seconds.
• Special ball bearings used for main shaft bearing.
• Larger stroke for carriage move.
• Carriage handle designed for easy operation.
• Excellent durability provides improved machine service life and precision.

Safety

• Motor has built-in brake to prevent entangling.
• Switch mechanisim protects Die-head from colliding with the hand wheel when threading short pipes.
• Double insulation motor.
• Motor equiped with auto-stop carbon brushes.
• Low centre of gravity designed for safety.

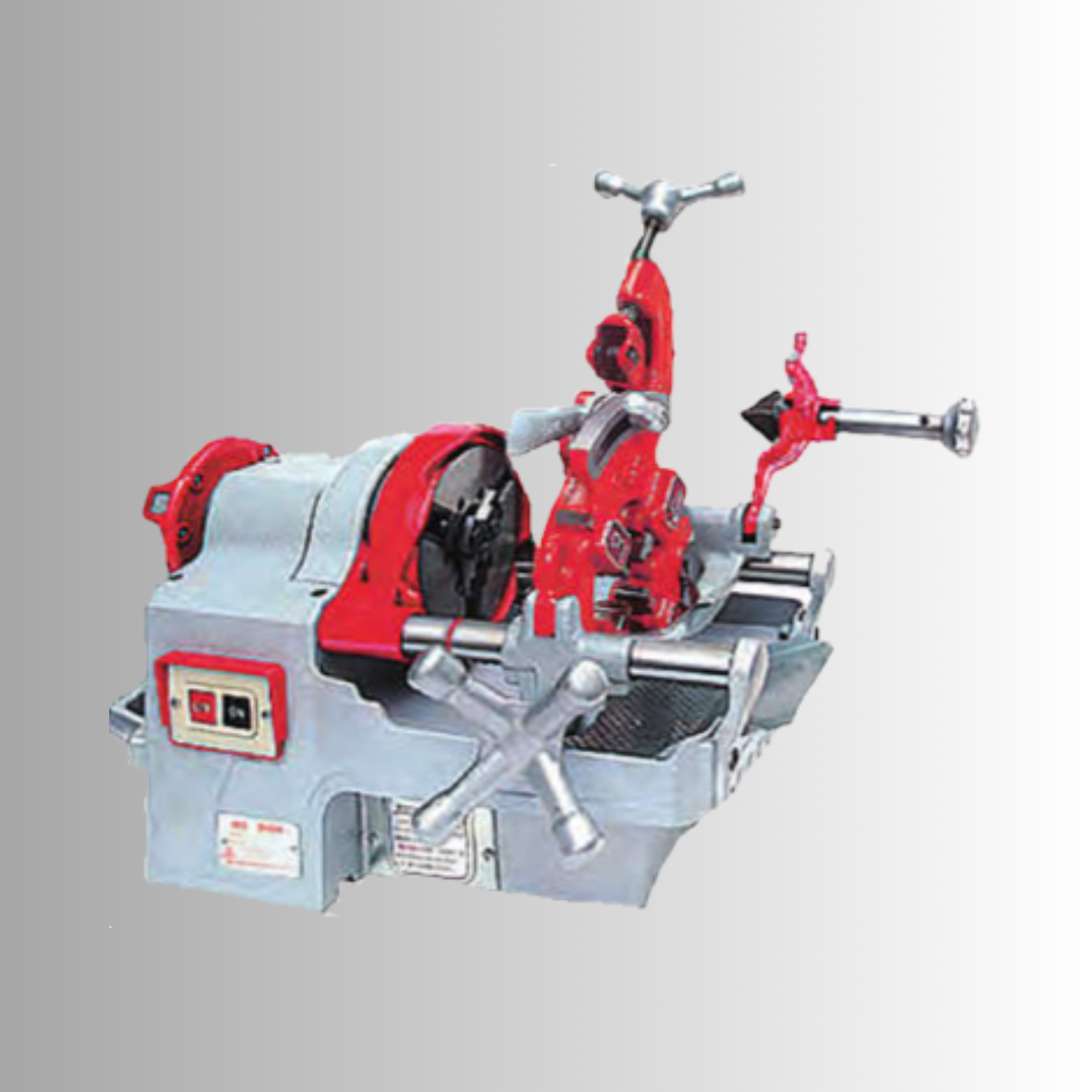

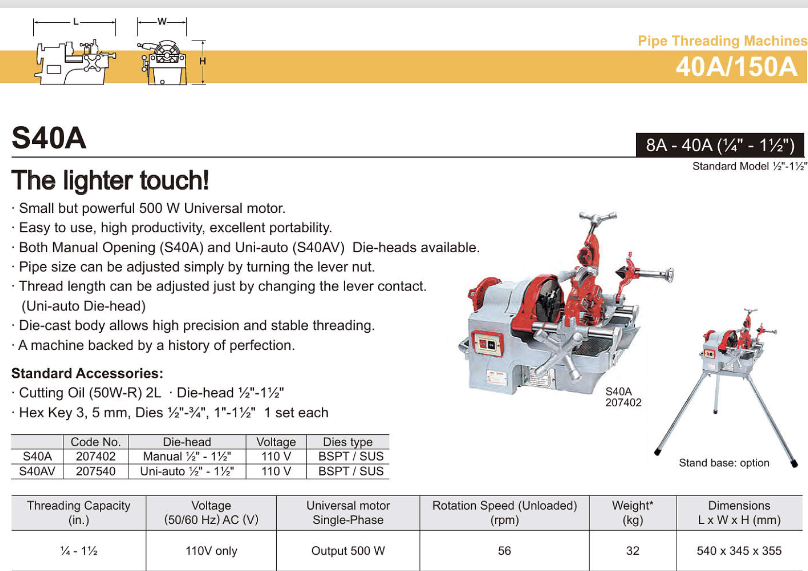

Features

• Small but powerful 500 W universal motor.
• Easy to use, high productivity, excellent portability.
• Both manual Opening (S40A) and Uni-auto (S40AV) Die-heads avaialable.
• Pipe size can be adjusted simply by turning the leaver nut.
• Thread lenth can be adjusted just by changing the leaver contact.
• Die-cast body allows high precision and stable threading.
• A machine backed by a history of perfection.

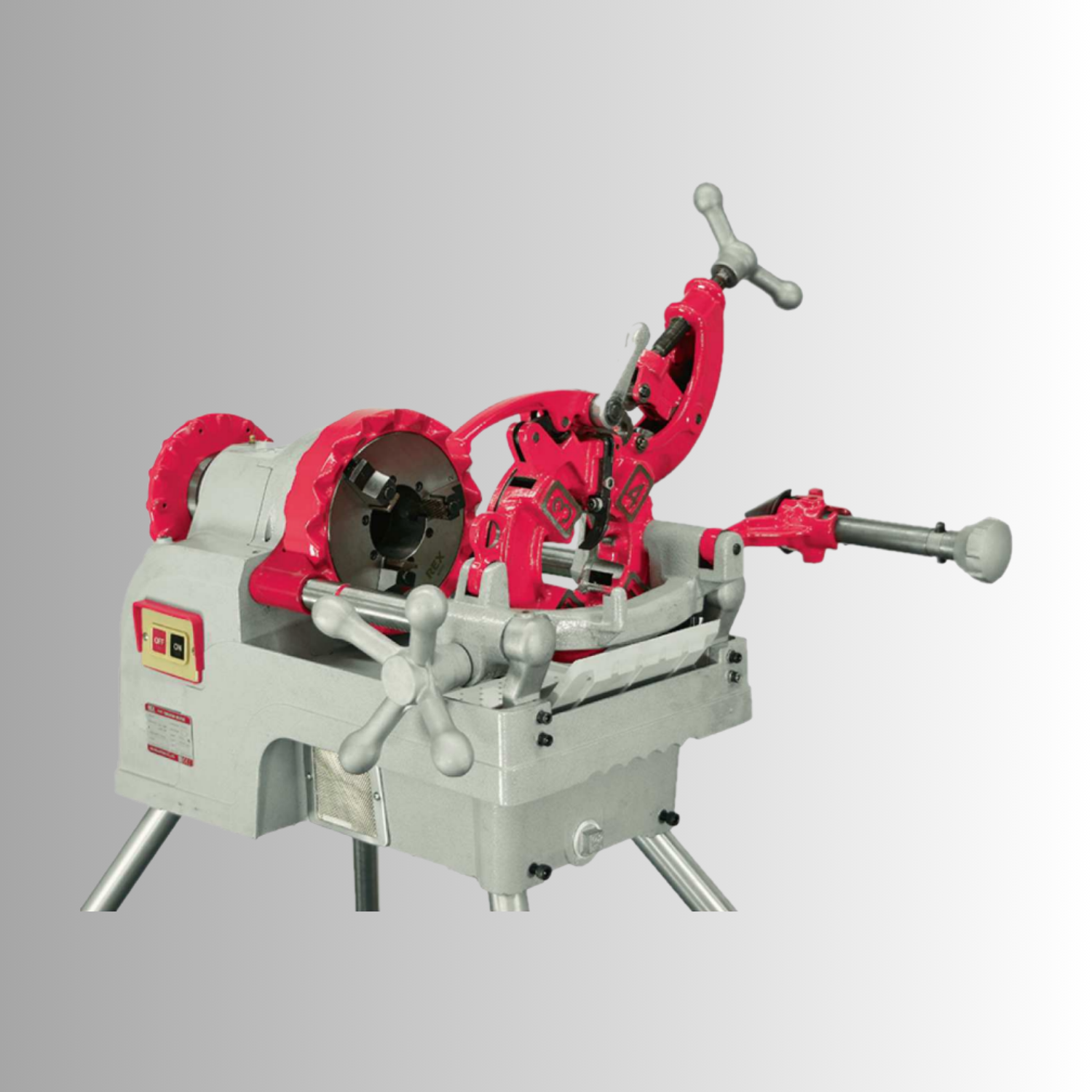

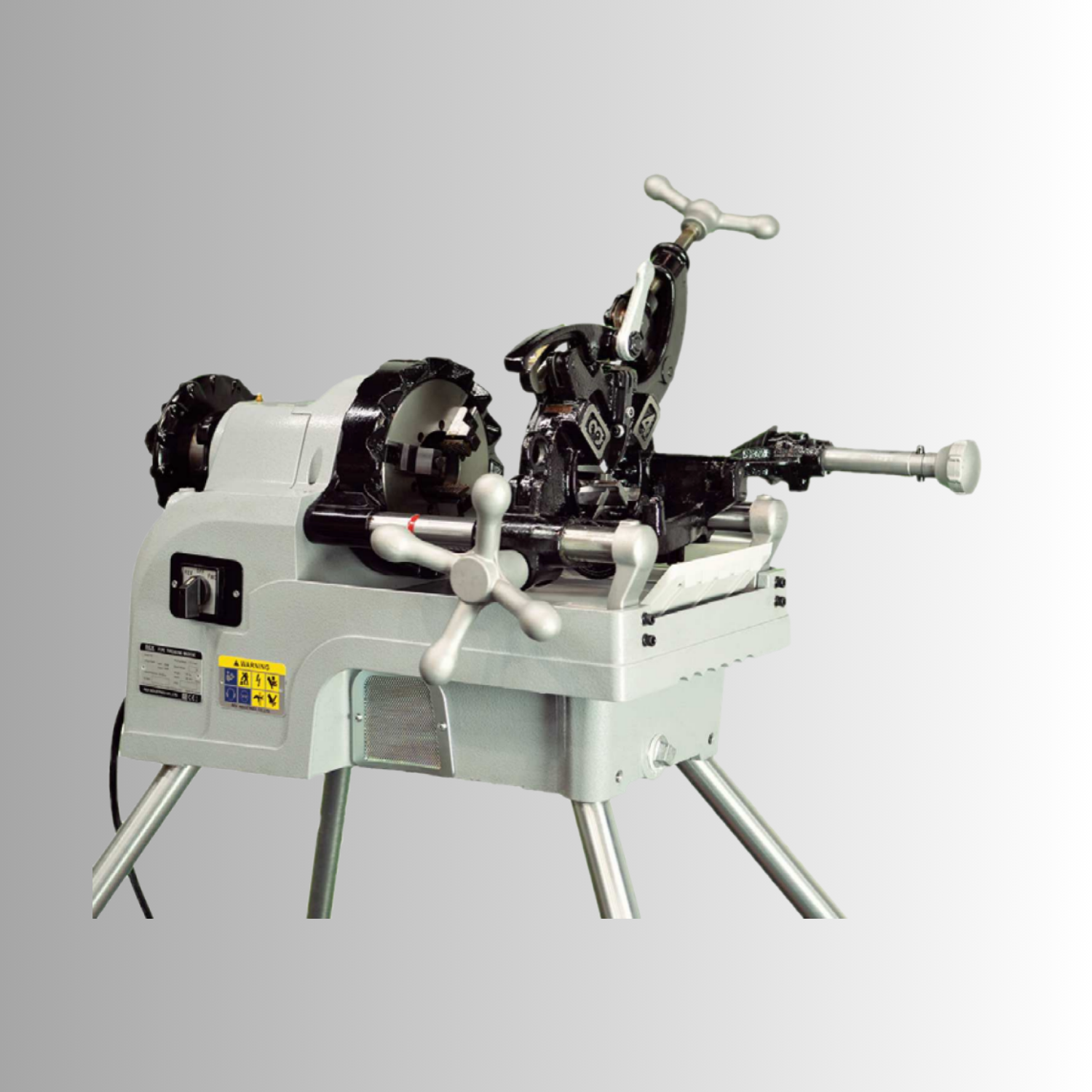

Features

• Stronger than the previous model and a more luxurious touch.
• Stroke is 25mm wider than the previous model making it easier to work with.
• Designed to redice scraps getting entagngled with a scrap receiver.
• Carbin brushes can be replaced through the windows on both sides.
• Foot switch now has an improved durability
• Push down switch has improved durability.
• Take up any slack between the main shaft and the shaft bearing to keep the pipe steady.

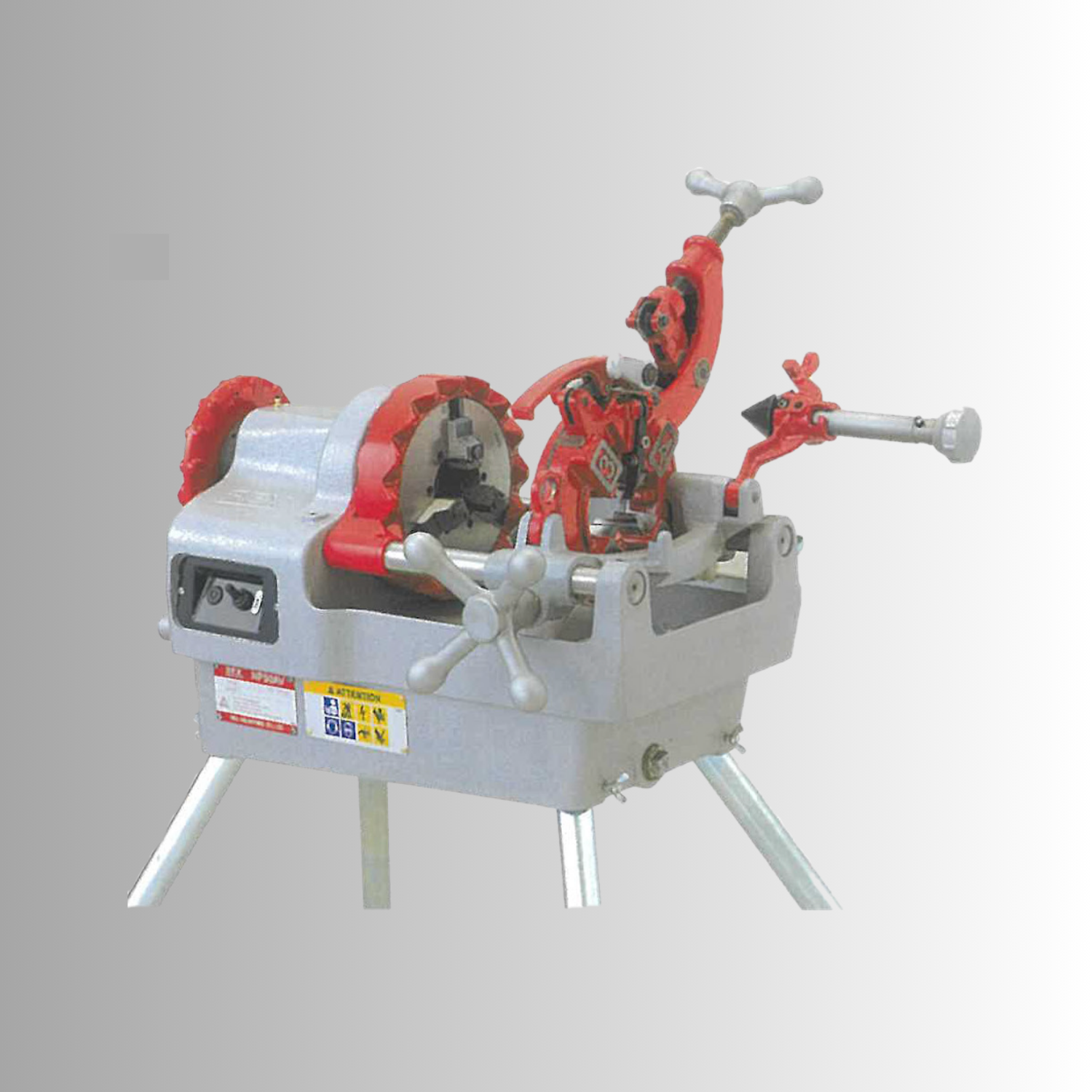

Features

• Stronger than the previous model and a more luxurious touch.
• Stroke is 25mm wider than the previous model making it easier to work with.
• Designed to redice scraps getting entagngled with a scrap receiver.
• Carbin brushes can be replaced through the windows on both sides.
• Foot switch now has an improved durability
• Push down switch has improved durability.
• Take up any slack between the main shaft and the shaft bearing to keep the pipe steady.

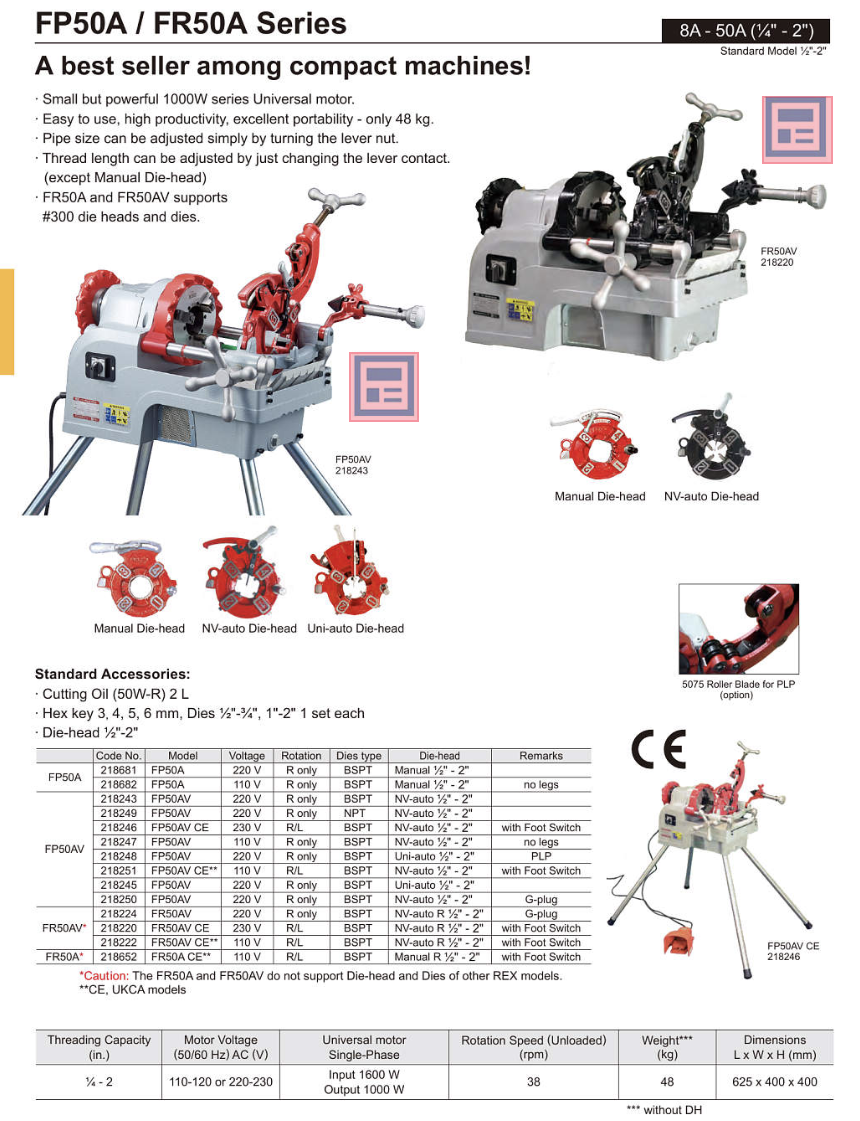

Features

• Small but powerful 700 W series motor.
• Easy to use, high productivity, excellent portability - only 48kg
• Pipe size can be adjusted simply by turning the lever nut.
• Thread length can be adjusted by changing the lever contact (except manual Die head)
• Supports #300 die heads and dies. (NR50AV)

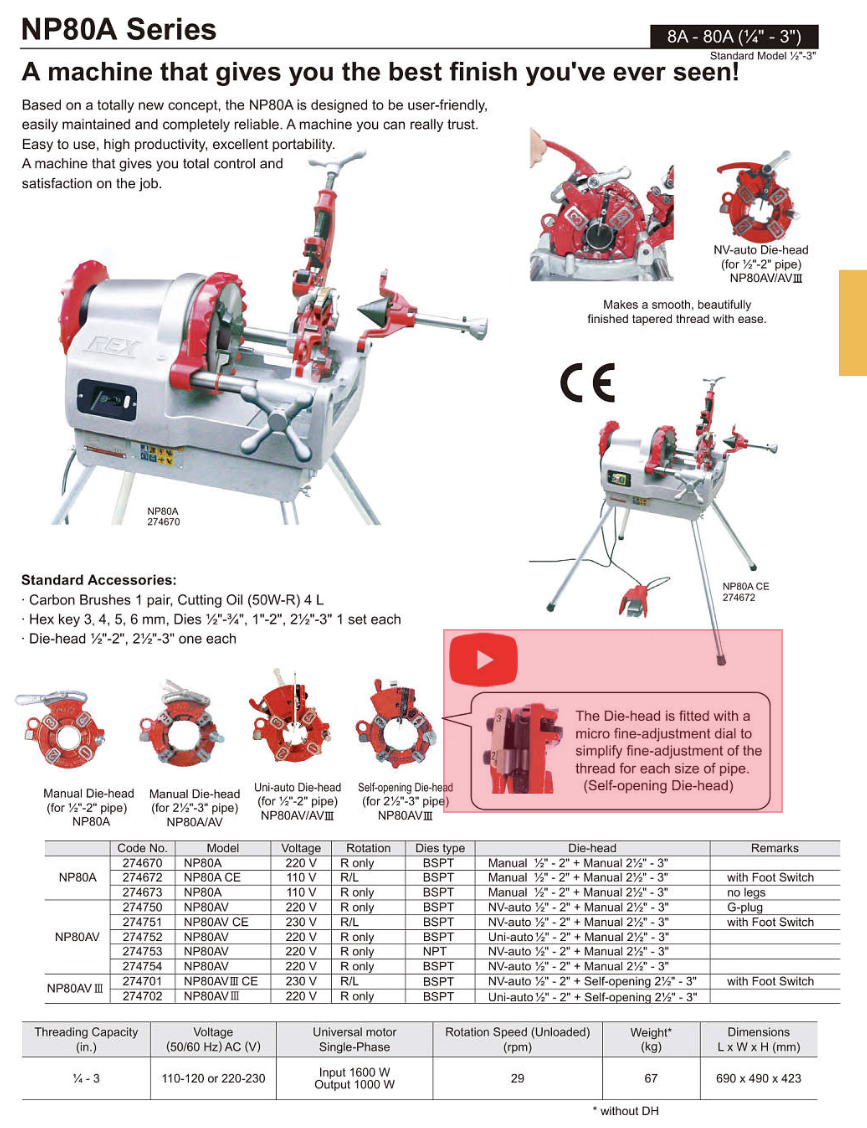

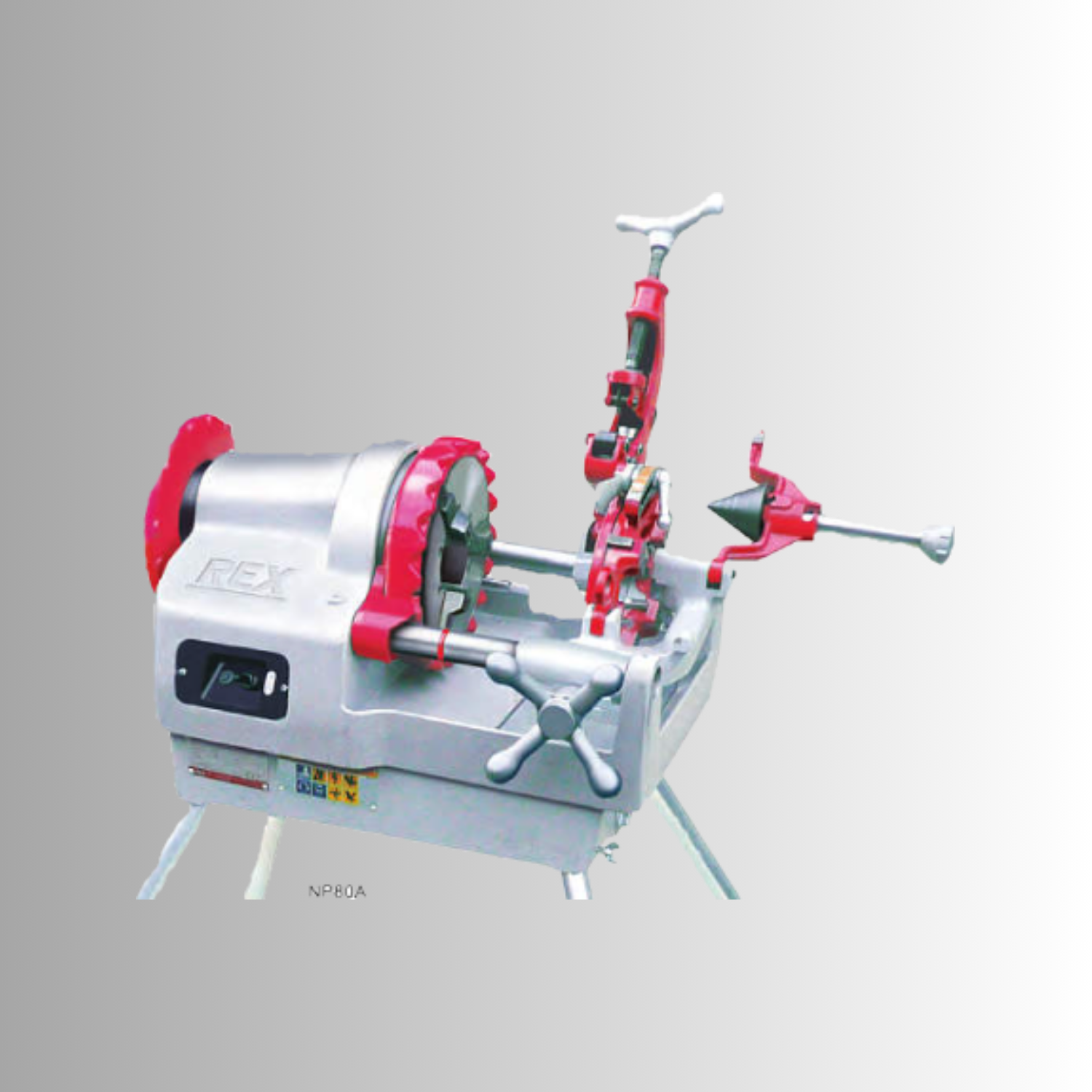

Need to Know

Based on a totally new concept, the NP80A is designed to be user-friendly, easily maintaned and completely reliable. A machine you can really trust. Easy to use, high productivity, excellent portability. A machine that gives you total control and satisfaction on the job.

Features

• Less than 100 sec to make a perfect 4" pipe taper thread, and less than 20 sec for a 1" taper thread.
• Uni-auto Die-head for 0.5" - 2" pipe. Dies are compatible with NP50A.NP80A Manual Die-heads and Uni-auto heads.
• Profiling Die-heads for 2.5" - 4". REX original profiling system enables precise, straight tapers, with20mm dies performing at higher speed and requering less power.
• Quick adjustable cutter.
• Quiet, maintenance-free condeser motor.
• Buit-in tool box is convinient for on site work.
• Large-capacity scrap catcher.
• Compact light weight for its class (123kg), it can be set up by just 2 people.

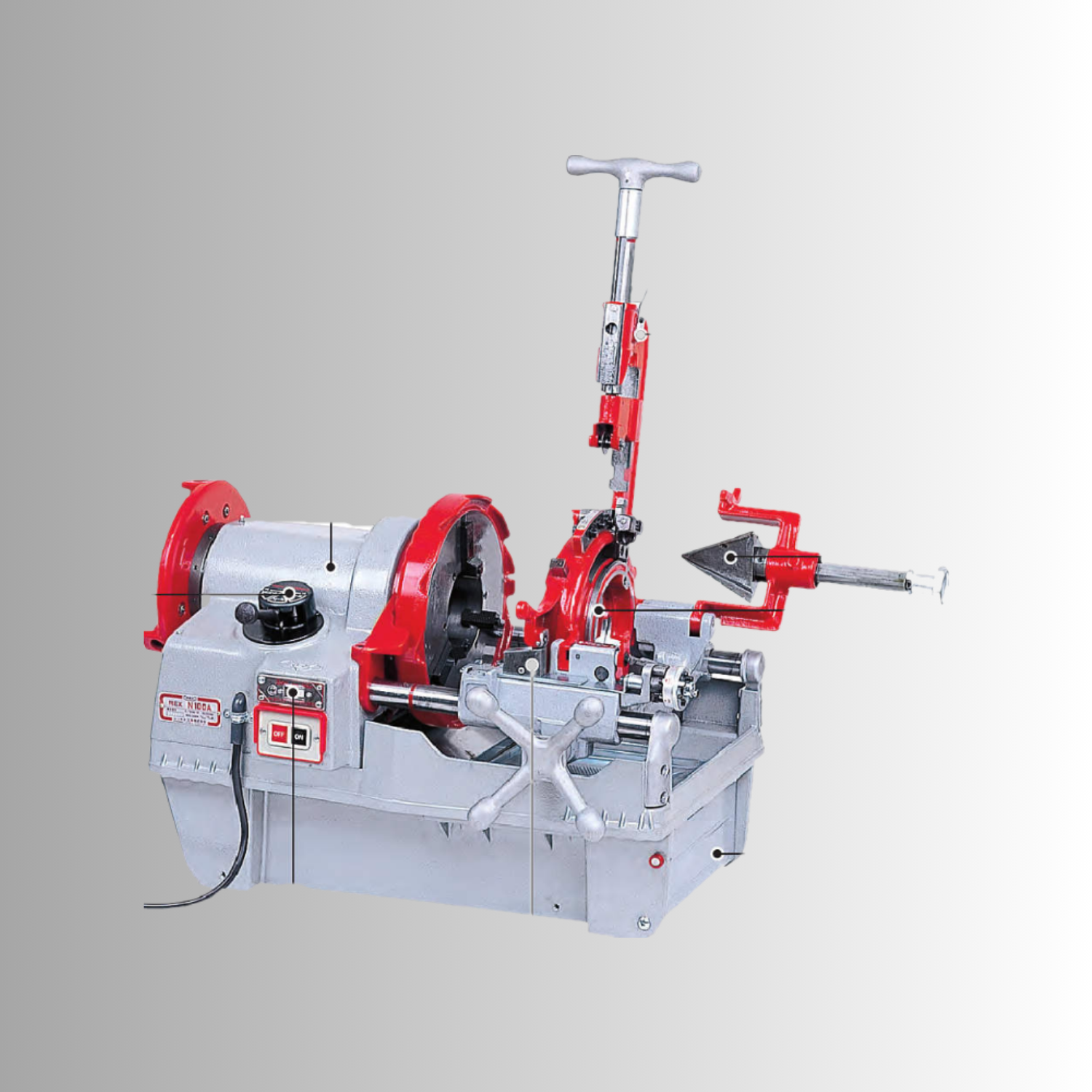

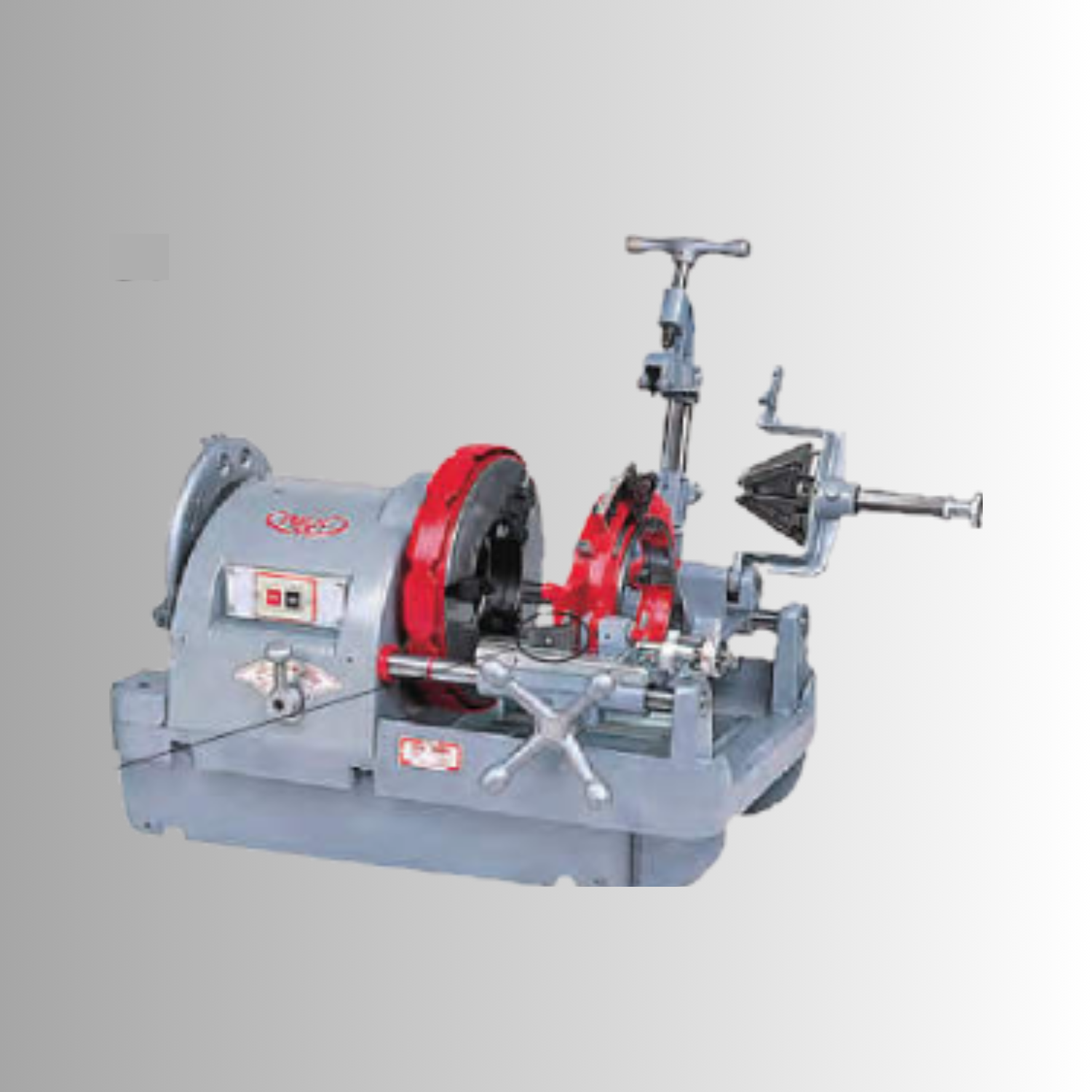

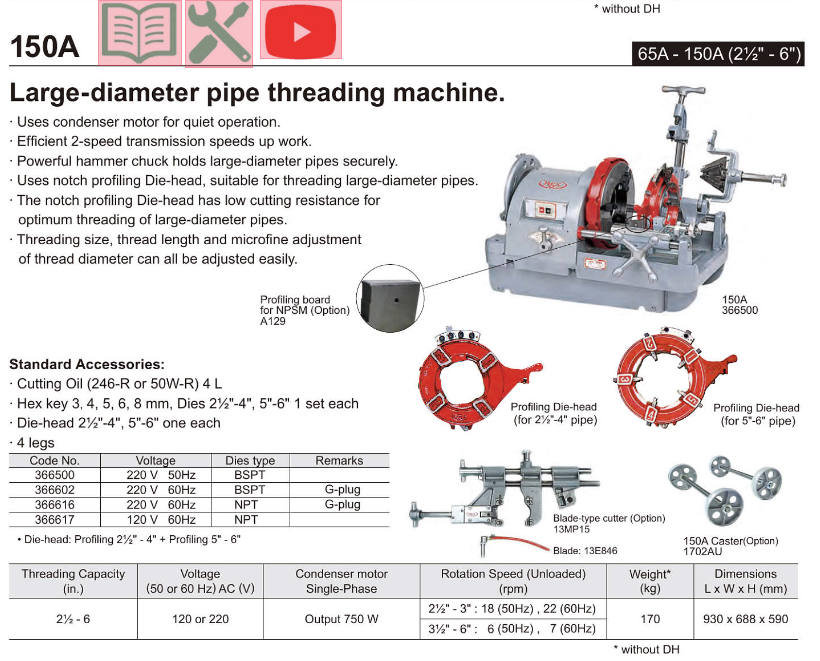

Features

• Uses condenser motor for quiet operation.
• Efficient 2-speed transmission speed up work.
• Powerful hammer chuck holds large-diameter pipes securely.
• Uses notch profiling Die-heads, suitable for threading large-diameter pipes.
• The notch profiling Die-head has low cutting resistance for optimum threading of large-diameter pipes.
• Threading size, thread length and microfine adjustement of thread can all be adjusted easily.
